MV(11KV) Cable

HIGH VOLTAGE CROSS-LINKED POLYETHYLENE CABLE

6/10 (12) kV COPPER CONDUCTOR WITH TAPE SHIELD















Application
  		:
 		Preferably used for urban networks. Exposed in aerial, direct burial, conduit, open tray and underground duct installation.
Max. Conductor Temperature  :
 		90 °C (Normal Operation)

AC Test voltage

:

21 kV

Reference standard  :

IEC 60502-2

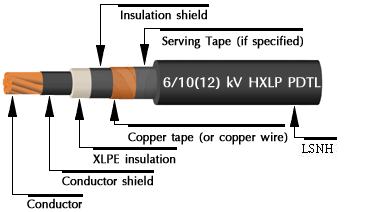

Construction



















:


















Conductor Compacted strand copper wire.
Conductor shield Semi-conducting cross-linked polyethylene.
Insulation

Cross-linked polyethylene.

Insulation shield Semi-conducting cross-linked polyethylene.
 Shield

Annealed copper wire with copper contact  tape(or annealed copper tape)
Sheath PVC





Nominal
Sectional
Area
mm²

Minimum

Number

of

wire

Diameter

of

Conductor

(approx.)

mm

Thickness

of

insulation

mm

Diameter

over

insulation

(Approx.)

mm

Thickness

of

sheath

mm

Overall

Diameter

(approx.)

mm

Maximum DC.

resistance

of Cdr.
at  20 °C

W / km

Minimum insulation resistance at 20 °C
MW - km



Allowable

ampacities

in free air

at 40 °C

ambient

A

Cable

wight
(approx.)
kg/km

Standard Packing
m

35

7

0.7

3.4

15.4

1.8

25

0.524

1,007

205

730

500/R
